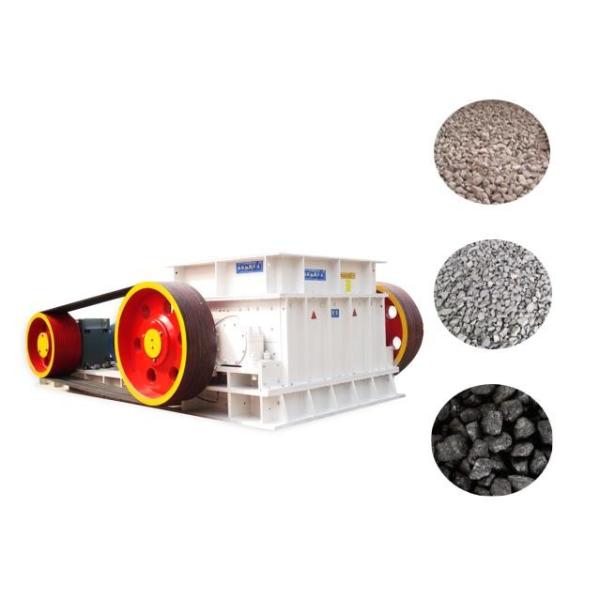

Customized Double Roller Crusher 200TPH 300 TPH Roll Mill Crusher

Name: Customized Double Roller Crusher 200TPH 300 TPH Roll Mill Crusher
Brand: BENO
Price: 98 USD

Brand Name : BENO

Model Number : XCMD500 * 2500 (R)

Certification : CE, ISO9001

Place of Origin : Sichuan, China

MOQ : 1 set

Price : USD 98,630.14-116,129.03 one set

Payment Terms : L/C, T/T

Supply Ability : 500 sets / year

Delivery Time : 30-90 days

Packaging Details : Simple package

diameter of roller : 500 mm

length of roller : 2500 mm

feed size : less than 100 mm

discharge size : less than 30-60 mm

output : 200-300 TPH

weight : 18 t

Contact Now

200-300 TPH Double Roller Crusher Customized Low Energy Consumption

Product Description

The Double Roller Crusher is a modification of the original limestone roller mill. The wear parts are still composed of double rods, and the crushing is done by using the special tooth profile developed. The size and quantity of the tooth pieces can be selected according to the feeding particle size, and the gap between the two rollers can also be adjusted according to the finished material specifications you need. Due to the material properties of wear parts, Double Roller Crusher is only suitable for soft rock crushing.

There are many models of this series of products, and they are frequently used in coal, chemical, cement, sand and gravel aggregate industries.

Technical Reference Data

Model	Diameter of roller (mm)	Length of roller (mm)	Maximum side length of feeding material (mm)	Grain size of discharging material(mm)	Production capacity (t/h)	Power (kw)	Soft connection weight (t)	Direct connection weight (t)
XCMD500	500	1000	≤100	≤30-60	50-120	37*2	9.5	8.2
		1500			100-180	45*2	11.8	10.5
		2000			150-220	90*2	14.5	12.8
		2500			200-300	110*2	18	16.3
XCMD650	650	1000	≤120	≤30-60	50-130	45*2	12.3	10.5
		1500			100-255	55*2	18.5	16
		2000			200-350	75*2	23	21
		2500			350-450	90*2	28	25
XCMD750	750	1000	≤140	≤40-70	150-250	55*2	23	21
		1500			200-350	75*2	26.5	24.5
		2000			250-450	90*2	30	27.2
		2500			350-550	110*2	33.8	30.8
XCMD850	850	1000	≤160	≤40-70	150-300	75*2	26	23.5
		1500			200-400	90*2	31.5	28.5
		2000			300-500	110*2	36	33
		2500			350-650	132*2	39	36
XCMD1000	1000	1000	≤220	≤40-80	250-450	90*2	46.8	41
		1500			350-550	110*2	52	46.2
		2000			500-700	132*2	58	52.5
		2500			650-800	160*2	65	60
XCMD1200	1200	1500	≤250	≤40-90	650-900	160*2	81	73
		2000			750-1100	185*2	93	85
		2500			900-1500	220*2	106	98

Finished Stockpile
